Single Screw Extruder
Top Single Screw Extruder Manufacturers in China
HuaZhao Machinery is a professional manufacturer of high-end single screw extruders in China. With strong technical expertise and continuous innovation, we provide efficient and reliable extrusion solutions for various industrial applications.
- CE SGS BV ISO9001
- Excellent pre-sales and after-sales service
The HuaZhao Single Screw Extruder is designed to mix and melt materials in a superior way.
Key Features:
- HuaZhao Machinery’s Single Screw Extruder offers a simple yet efficient solution for various industries. With its easy operation and low maintenance, it provides a cost-effective way to process materials such as plastics and food products.
- The extruder boasts high efficiency and stable performance, ensuring continuous production and consistent quality. Its low energy consumption reduces operational costs, making it an ideal choice for businesses looking to optimize production.
- Designed for flexibility, the HuaZhao Single Screw Extruder can handle a wide range of materials and applications. Its precise temperature control and uniform mixing guarantee top-quality results, while the equipment’s customizable features meet diverse processing needs.
- With low initial investment and high reliability, HuaZhao Machinery’s extruder is perfect for small and medium enterprises aiming to enhance their production efficiency.

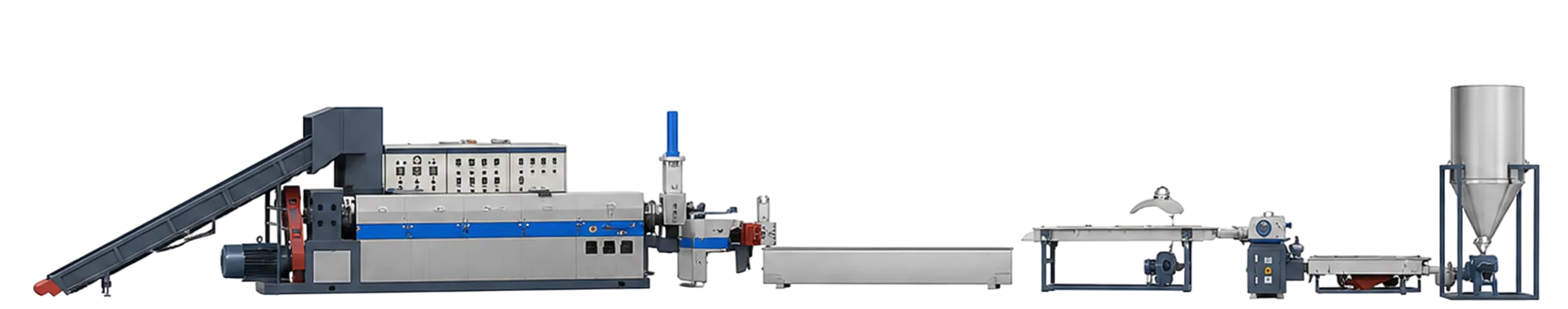

Underwater Strand Pelletizing System Structure
| Feature | Specification |
|---|---|
| Screw Design | Single-screw |
| Condition | Brand New |
| Plastic Processed | PE, PP, ABS, PS, HDPE/LDPE, PET |
| Application | Pelleting, Granulating, Pellet Making |
| Warranty | 1 Year |
| Key Selling Points | Competitive Price |
| Applicable Industries | Manufacturing Plant |
| Video Outgoing-Inspection | Provided |
| Core Components | Bearing, Motor, Gear, PLC |
| Machinery Test Report | Provided |
| Screw Material | 38CrMoALA |
| Screw Diameter (mm) | Generally Ø150-300 mm, Customizable |
| Screw Speed (rpm) | 150 rpm |
| Brand Name | HuaZhao |
| Voltage | 380V 50HZ， Customizable |
| Dimension (LWH) | Customizable based on requirements |
| Power (kW) | 90 |
| Function | Recycling & Pelletizing |
| Input Material | Crushed or agglomerated PE PP film |
| Cutting Type | Strand cutting |
| Inverter | ABB |
| Motor | Siemens Beide |
| Mother Extruder L/D | 28:01:00 |
| Motor Power | 90 kW |
| Baby Extruder L/D | 10:01 |
| Motor Power of Baby Extruder | 30 kW |
| Water Tank | 4000 mm |
| Model | Screw Diameter (mm) | Screw Aspect Ratio (L/D) | Main Motor Power (kW) | Screen Changer | Output (kg/h) |
|---|---|---|---|---|---|
| HZ160 | ∅160 | 20-32 | 45-55 | Hydraulic | 200-300 |
| HZ180 | ∅180 | 20-32 | 75-85 | Hydraulic | 500-600 |
| HZ200 | ∅200 | 20-32 | 75-90 | Hydraulic | 700-800 |
| Custom | Up to ∅300 | 20-32 | Customizable | Hydraulic | Customizable |
