Swing Arm Shredder
Industrial Swing Arm Plastic Shredder Machine Manufacturers in China
HuaZhao Machinery manufactures heavy-duty industrial plastic swing arm shredders designed for efficient size reduction of plastic waste, film rolls, woven bags, plastic drums, pipes, pallets, and bulky hollow materials.
- CE SGS BV ISO9001
- Excellent pre-sales and after-sales service

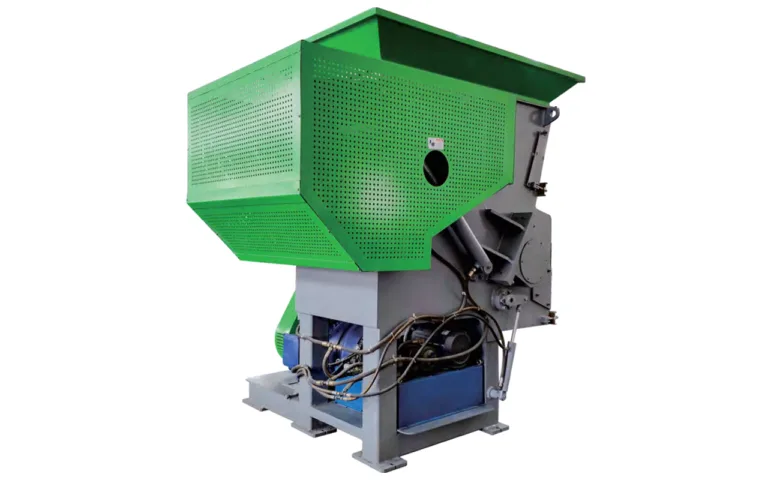

High Capacity Industrial Plastic Swing Arm Shredder
Key Features:

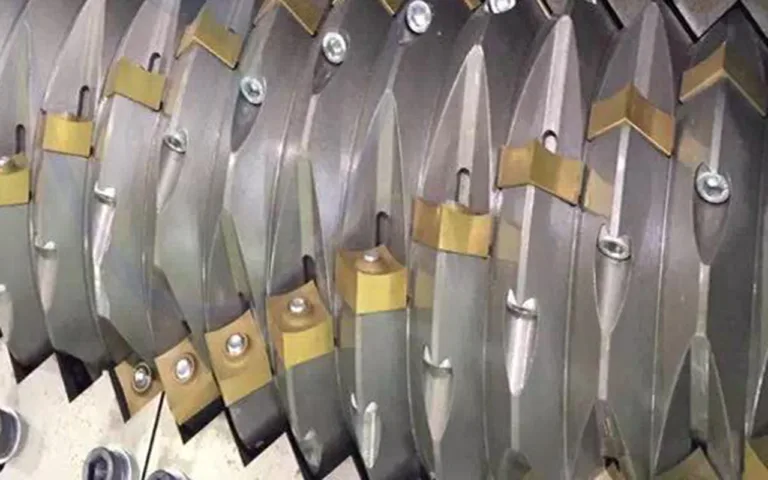

- Dense V-type rotor blade structure for uniform cutting force
- Swing arm hydraulic pushing system with low energy consumption and easy maintenance
- Low speed, high torque, and low noise operation
Suitable for high-output PE and PP film woven bags, especially baled materials without removing or cutting metal wires. The swing-arm shredder automatically loosens and shreds the material directly.

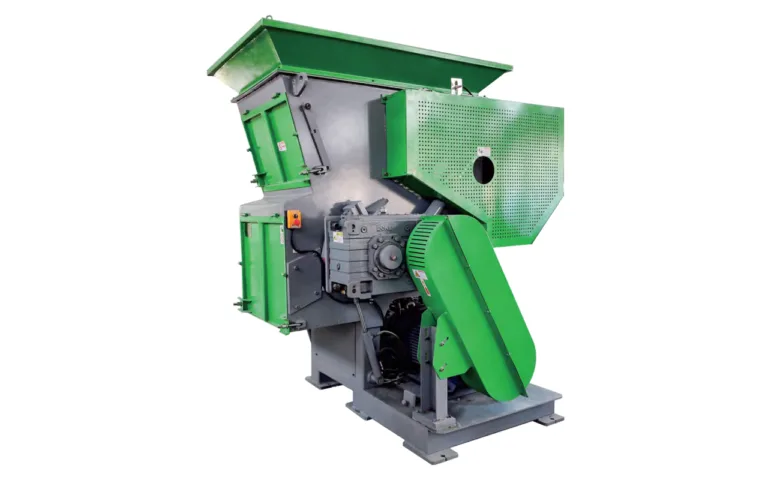

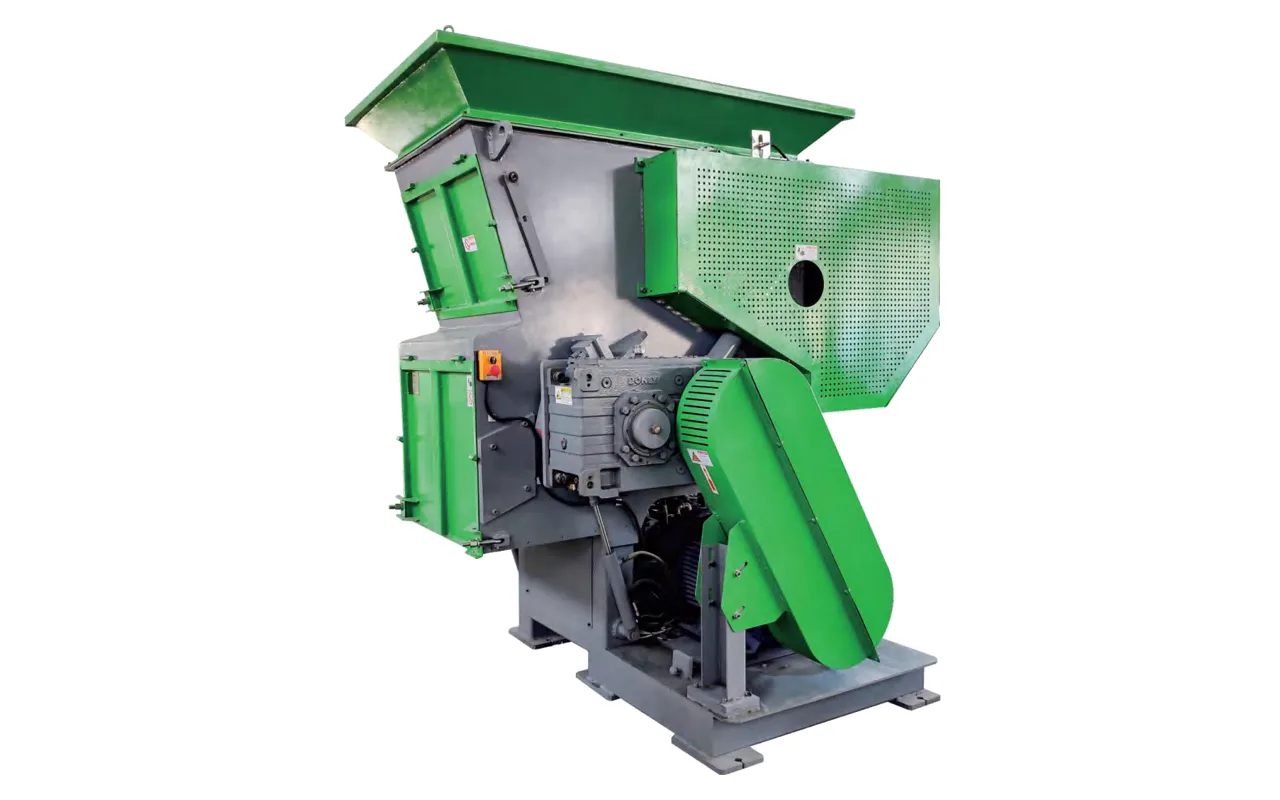

Industrial Plastic Shredder Machine For Sale
Specifications for Swing Arm Plastic Shredder
| Item | Unit | GSB850 | GSB1050 | GSB1250 | GSB1450 | GSB1500 | GSB2000 |
|---|---|---|---|---|---|---|---|
| Rotation Diameter | mm | 415-457 | 415-457 | 457 | 457 | 750 | 750 |
| Outer Size | mm | 860×1180 | 1045×1620 | 1250×1820 | 1450×1850 | 2450×1620 | 2450×2020 |
| Inlet Size | mm | 800×1290 | 1000×1800 | 1200×1800 | 1350×1800 | 1500×1490 | 1500×1900 |
| Motor Power | kW | 45/55 | 55/75 | 55/75 | 75 | 2×75 | 2×75×90 |
| Rotation Speed | rpm | 74 | 74 | 74 | 74 | 52 | 52 |
| Moving Blade Qty | pcs | 56/60 | 72-78 | 81-90 | 111-104 | 96 | 96 |
| Fixed Blade Qty | pcs | 6 | 6 | 6 | 8/10 | 8/10 | 8/10 |
| Screen Aperture | mm | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 | 40-100 |
| Hydraulic Station | kW | 4 | 5.5 | 7.5 | 7.5 | 11 | 11 |
| Weight | kg | 6500 | 7200 | 8500 | 9400 | 16000 | 23000 |
| Capacity | kg/h | 600-800 | 800-1000 | 1000-1200 | 1200-1500 | 1800-2000 | 2000-2500 |
Common Questions About Industrial Single Shaft Waste Shredder Machine
Q: What is Plastic Swing Arm Shredder ?
A:
A Plastic Swing Arm Shredder is a heavy-duty single shaft shredding machine designed for crushing and reducing large-volume plastic waste such as PE/PP film, woven bags, plastic drums, pallets, pipes, and baled materials.
The machine uses a hydraulic swing arm pushing system to automatically feed materials into the rotor for efficient shredding. Compared with traditional shredders, the swing arm design provides stronger feeding force, stable operation, and better performance when processing lightweight or bulky plastics.
It is especially suitable for recycling baled plastic film and woven bags without manually disassembling the bundles or removing metal wires. The shredder automatically loosens and shreds the material directly, improving recycling efficiency and reducing labor costs.
Key features include:
- Low speed and high torque operation
- Dense V-type rotor blade structure
- Low noise and low energy consumption
- Hydraulic swing arm feeding system
- Easy maintenance and stable performance
- Suitable for high-capacity plastic recycling lines
Q: What is waste shredder machine price ?
A:
Waste shredder machine prices vary widely depending on machine type, motor power, capacity, and application.
Typical price ranges:
- Small plastic shredder machines: around $2,000–10,000
- Industrial single shaft shredders: around $10,000–30,000
- Heavy-duty double shaft shredders: around $20,000–180,000
- Complete waste recycling shredder systems: around $10,000–300,000 depending on capacity and automation level.
Price is mainly affected by:
- Shredding capacity (kg/h)
- Material type (plastic, metal, tire, wood, MSW)
- Motor power
- Rotor size and blade design
- Hydraulic system
- Automation level
For plastic recycling applications such as PE film, PP woven bags, plastic pallets, drums, and pipes, industrial single shaft shredders are commonly priced between $15,000–60,000 depending on output capacity and configuration.
Q: Where to Find an Industrial Single Shaft Shredder Manufacturer?
A:
China
The world’s largest production base for plastic recycling machinery and industrial shredders, especially in:
- Jiangsu
- Guangdong
- Zhejiang
- Anhui
China dominates the mid-range and cost-effective market, with strong export volume and complete supply chains.
Q: What Makes China a Leading Single Shaft Shredder Manufacturer and Factory?
A:
China has become one of the world’s leading production centers for industrial shredding equipment due to its mature manufacturing supply chain, competitive pricing, and strong customization capabilities. A professional single shaft shredder manufacturer and factory in China can provide efficient shredding solutions for plastic recycling, waste management, and industrial scrap processing.
As a professional single shaft plastic shredder exporter China, HuaZhao Machinery supplies high-performance shredders for PE film, PP woven bags, plastic drums, pipes, pallets, and other plastic waste materials. Our shredders feature low-speed high-torque operation, durable alloy steel blades, stable hydraulic pushing systems, and low maintenance costs, making them suitable for heavy-duty recycling applications worldwide.
