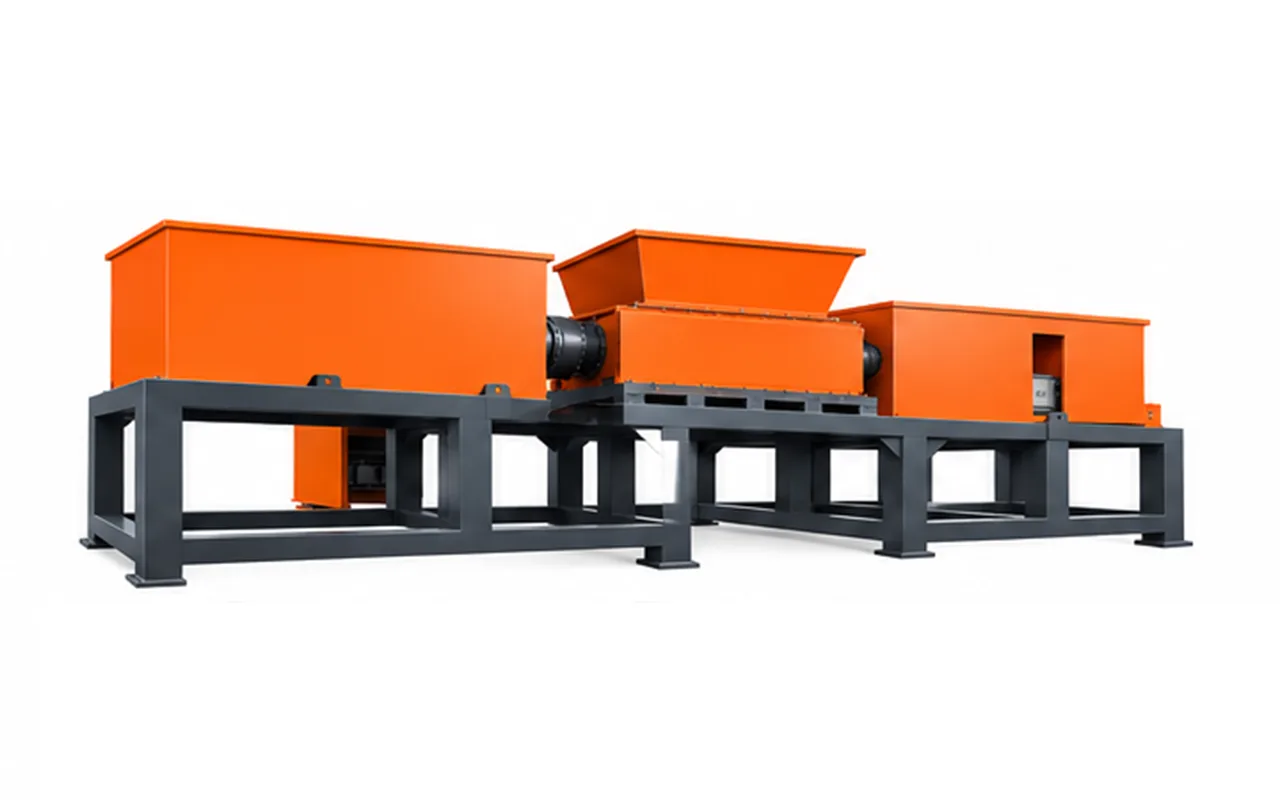

Industrial Copper Scrap Shredder Machine

Heavy-Duty Copper Scrap Recycling Shredder Factory in China

Engineered for heavy-duty industrial recycling, our High-Capacity Scrap Metal Shredder Machine is built to tackle the toughest scrap materials with unmatched efficiency. Whether you are processing end-of-life vehicles (ELVs), mixed light iron, steel structures, or industrial scrap, this robust shredder delivers high-volume throughput, exceptional reduction ratios, and reliable long-term performance for large-scale recycling plants.

Front side view of underwater strand pelletizing system

What Copper Scrap Materials Can Be Shredded?

Our industrial copper scrap shredder processes copper wires, cables, pipes, sheets, and mixed copper scrap, reducing materials into smaller pieces for efficient recycling and recovery.

Copper Wire and Cable Scrap Shredding

Shreds scrap copper wires and cables into smaller pieces for easier handling and further recycling.



Copper Pipes, Tubes, and Sheets Scrap Shredding

Processes copper pipes, tubes, and sheets into manageable sizes for efficient material recovery.

Mixed Copper Scrap Scrap Shredding

Shreds mixed copper scrap into smaller pieces for easier handling, sorting, and recycling.

Industrial Copper Waste Scrap Shredding

Processes industrial copper waste into manageable sizes for efficient material recovery and recycling.

How HuaZhao Provides Customized Scrap Metal Shredder Machine Solutions

Custom Double Shaft Design

Industrial waste shredder machine technical drawing and customized design

Custom Capacity  Design

Industrial waste shredder machine engineering drawing with customized structure design

Case Video of Heavy-Duty Copper Scrap Shredders

Watch our heavy-duty copper scrap shredder in action as it efficiently processes copper scrap and industrial copper waste, delivering reliable shredding performance for recycling applications.

Industrial Copper Recycling Machine For Sale

Hydraulic Swing Arm Shredder for Plastic Recycling
HZ Machine
Guangdong, China
It is suitable for PE, PP film woven bags with large output, and especially suitable for raw materials packed by balers without disassembling and cutting off metal wires. The swing-arm shredder will...
HZB1500:Ø457 mm | Outer Size 1400×1570 mm | Inlet Size 800×1290 mm | 90 kW | 74 rpm | 96 blades | 8/10 fixed blades | Screen Ø40–100 mm | Hydraulic 11 kW | 9500 kg | 1500–1800 kg/h
HZBS1500:Ø750 mm | Outer Size 2450×1620 mm | Inlet Size 1500×1490 mm | 2×75 kW | 52 rpm | 96 blades | 8/10 fixed blades | Screen Ø40–100 mm | Hydraulic 11 kW | 16000 kg | 1800–2000 kg/h
Double Rotor Shredder Machine
HZ Machine
Guangdong, China
The HuaZhao Double Rotor Shredder Machine is designed for high-capacity shredding of waste plastics, rubber, packaging materials, and industrial solid waste, featuring high torque, stable performance,...
HZSD1000:Ø400 mm | 65 rpm | 55×2 kW | 70×2 moving blades | 2×4 fixed blades | Chamber 1000×980 mm | 7500 kg | 1000–1500 kg/h
HZSD1200:Ø460 mm | 60 rpm | 75×2 kW | 80×2 moving blades | 3×4 fixed blades | Chamber 1200×1250 mm | 8800 kg | 1200–2000 kg/h
HZSD1400:Ø460 mm | 60 rpm | 90×2 kW | 98×2 moving blades | 4×4 fixed blades | Chamber 1400×1250 mm | 10200 kg | 2000–3000 kg/h
Single Shaft Shredder Machine for Plastic Waste Recycling
HZ Machine
Guangdong, China
Suitable for crushing PP, PE, PET, PC, ABS, plastic lumps, plastic films, electronic waste, aluminum cans, plastic building materials, wood, and other recyclable materials.
GSD1000:Ø355/400 mm | Inlet 1450×1000 mm | 72 rpm | 56 moving blades | 4 fixed blades | Screen Ø40–100 mm | 55/75 kW | Hydraulic 4 kW | Push Range 1000 mm | 4900 kg | ≤1000 kg/h
GSD1200:Ø415 mm | Inlet 1450×1200 mm | 72 rpm | 68 moving blades | 4 fixed blades | Screen Ø40–100 mm | 75/90 kW | Hydraulic 5.5 kW | Push Range 1200 mm | 6500 kg | ≤1500 kg/h
Heavy Crusher Machine for Plastic Waste Recycling
HZ Machine
Guangdong, China
The Heavy Duty Crusher is designed for efficient crushing of large and hard plastic materials, featuring high output capacity, stable performance, low energy consumption, and durable blades for heavy-...
PCS800:Ø580×800 mm | 37/45 kW | 2×3/2×5 moving blades | 2×2 fixed blades | Feed Opening 600×1000 mm | Screen Ø12–100 mm | Electric1.1 kW
PJS1000:Ø580×1000 mm | 55/75 kW | 2×3/2×5 moving blades | 2×2 fixed blades | Feed Opening 600×1200 mm | Screen Ø12–100 mm | 1.1 kW
PJS1200:Ø680×1200 mm | 90/110 kW | 2×3/2×5 moving blades | 2×2 fixed blades | Feed Opening 600×1200 mm | Screen Ø12–100 mm | 1.1 kW
Large Diameter Pipe Crusher for HDPE and PVC Pipes
HZ Machine
Guangdong, China
The Large Diameter Pipe Crusher is specially designed for crushing large plastic pipes, profiles, and thick-wall materials, featuring high crushing efficiency, stable operation, strong cutting force,...
GSDP600/600:Ø600×600 mm | 30/45 kW | 2×3/2×5 moving blades | 4 fixed blades | Screen Ø12 mm | Hydraulic Drive
GSDP400/500:Ø400×500 mm | 15 kW | 2×3 moving blades | 4 fixed blades | Screen Ø12 mm | Handle Drive

Specifications for High-Torque Copper Scrap Shredder Machine

ItemUnitHZ-DD800HZ-DD1000HZ-DD1200HZ-DD1400
Motor PowerkW45×255×275×290×2
Spindle Rotary DiametermmΦ400Φ400Φ460Φ460
Speedrpm65656060
Number of Moving Bladespcs56×270×280×298×2
Number of Fixed Bladespcs2×42×43×44×4
Shredding Chamber Dimensionmm800×9801000×9801200×12501400×1250
Production Capacitykg/h800-12001000-15001200-20002000-3000
Weightkg58007500880010200

Welcome to HuaZhao Industrial Shredder Machine Factory

Professional Metal Scrap Pre-Shredder Machines Manufacturer

Common Questions About Industrial Shredder Machine for Copper Scrap

Q: What materials can a copper scrap shredder machine process?

A:

A copper scrap shredder machine can process copper wires, cables, pipes, tubes, sheets, and mixed copper scrap. The suitable machine configuration depends on material dimensions, hardness, and required output size.

Q: How does a high-torque copper scrap shredder work?

A:

A high-torque copper scrap shredder uses a powerful drive system and heavy-duty cutting blades to tear and shear copper scrap into smaller pieces. The shredded material is easier to handle, transport, and prepare for further recycling.

Q: What is the difference between a copper scrap shredder and a copper wire granulator?

A:

A copper scrap shredder reduces bulky copper scrap into smaller pieces, while a copper wire granulator is designed to separate copper from cable insulation and recover copper granules. The appropriate equipment depends on the feed material and recycling process.

Q: Can a copper scrap shredder process copper wires and cables?

A:

Yes, a properly configured copper scrap shredder can process certain copper wires and cables. For insulated cables requiring copper recovery, a downstream cable granulation and separation system may be needed.

Q: What factors determine the capacity of a copper scrap shredder?

A:

Processing capacity depends on the type of copper scrap, material dimensions, feeding method, motor power, rotor design, and required output size. Providing material photos and target capacity helps determine the appropriate configuration.

Q: What output size can a copper scrap shredder produce?

A:

The output size depends on the screen or cutting configuration, blade design, and material characteristics. Share your required particle size and copper scrap specifications to identify a suitable shredding solution.

Q: How do I choose the right copper recycling machine?

A:

Choose a copper recycling machine based on the material type, daily processing capacity, required output size, and whether copper separation is necessary. A shredder is suitable for size reduction, while a granulation and separation line is more appropriate for recovering copper from insulated cables.

Q: How much does an industrial copper scrap shredder machine cost?

A:

The copper scrap shredder machine price depends on shredding capacity, motor power, machine configuration, automation level, and auxiliary equipment. Contact HuaZhao with your material type, expected capacity, and output requirements for a customized quotation.

Q: Can HuaZhao customize a copper scrap shredding solution?

A:

Yes, HuaZhao can evaluate copper scrap characteristics and processing requirements to recommend a suitable machine configuration. Send material photos or videos, target capacity, and required output size for a tailored proposal.
