Two Stage Plastic Pelletizing Line
Top Two Stage Plastic Pelletizer Line Manufacturers in China
HuaZhao Machinery is a professional manufacturer of high-end twin stage pellets production line in China. With strong technical expertise and continuous innovation, we provide efficient and reliable extrusion solutions for various industrial applications.
- CE SGS BV ISO9001
- Excellent pre-sales and after-sales service
The HuaZhao Two Stage Plastic Pellets Production Line is designed to efficiently recycle and pelletize various plastic materials with stable output, low energy consumption, and consistent pellet quality.
Key Features:
- Degassing performance
- Melt homogenization
- Filtration stability
- Final pellet quality
A double-stage pelletizing line is the most widely used solution for recycling plastic film, flakes, and regrind materials with moderate moisture and contamination levels. Compared with a single-stage system, it provides more stable extrusion, better filtration performance, and higher pellet quality.
Plastic Pelletizing Machine For Sale
Main Components of Two Stage Plastic Pelletizing Machine
Explore the essential units that work together to deliver efficient, continuous, and reliable plastic recycling and pelletizing performance.
-

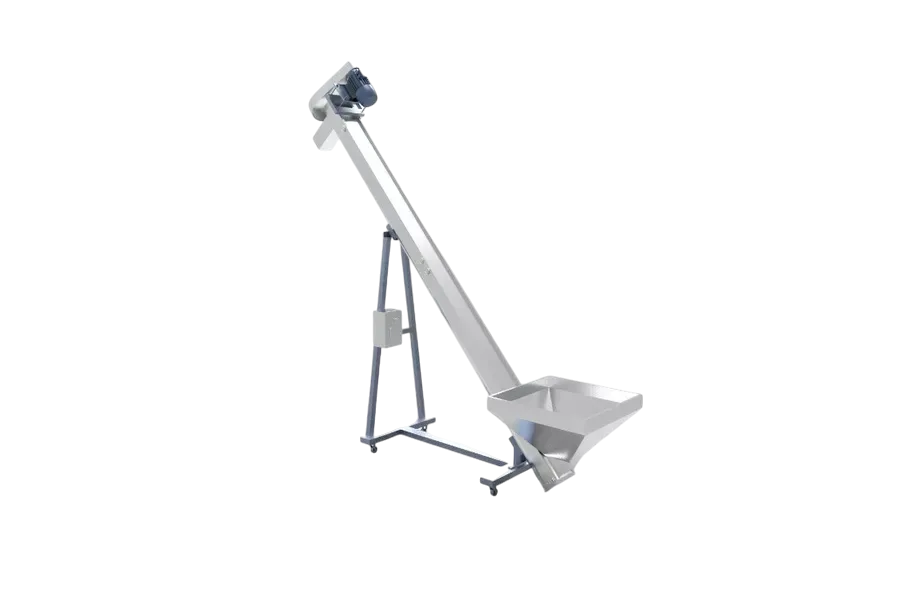

1. Screw Feeder
-
2. Extruder
-
3. Dual-station Screen Changer
-
4. Water Ring Pelletizer
-
5. Water Cooling Tank
-
6. Air Dryer
-
7. Vibrating Screen
-
8. Material Hopper
-
9. Electrical Control Cabinet
The air dryer unit removes moisture from washed plastic materials before pelletizing. It improves drying efficiency and helps ensure stable pellet quality in plastic recycling lines.

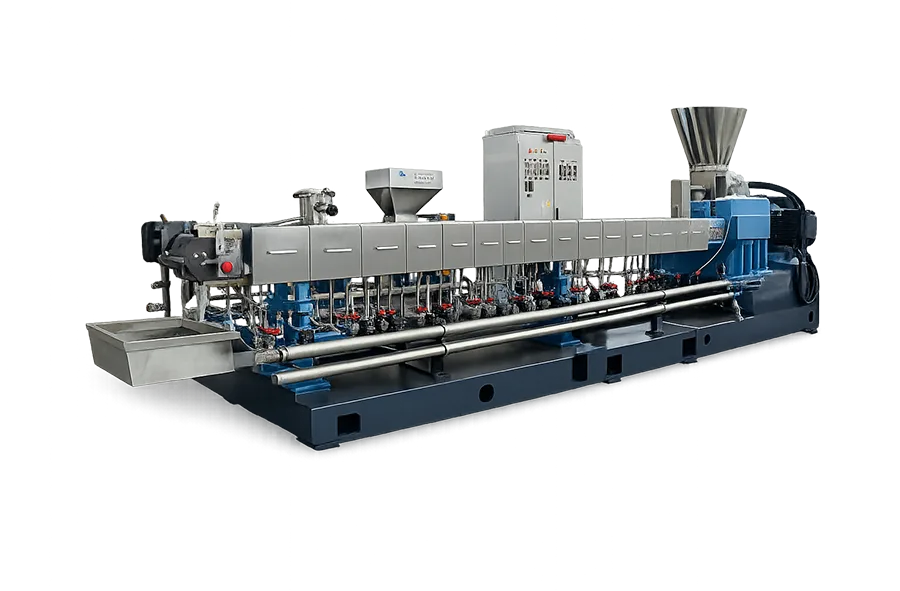

Melts, mixes, and extrudes plastic materials continuously for stable pelletizing performance.

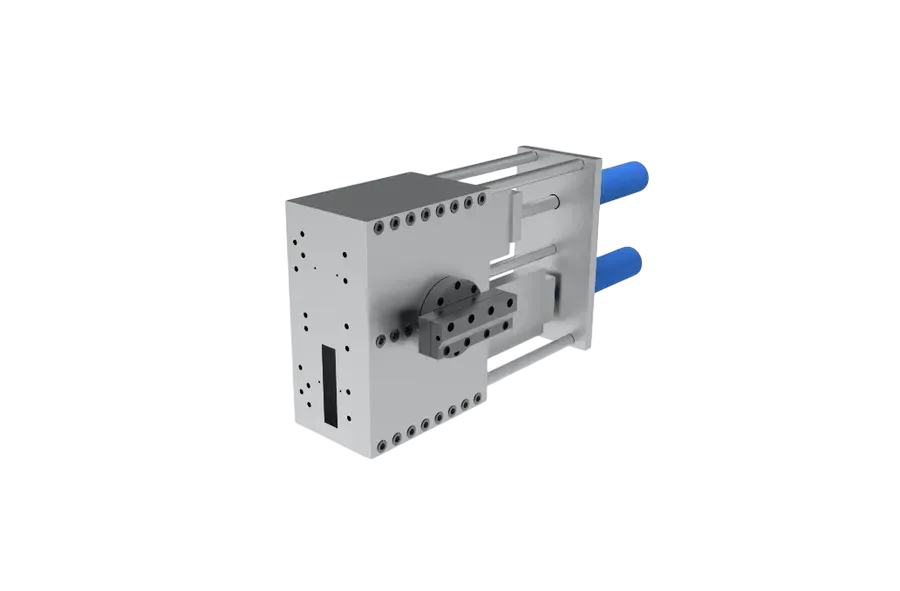

The continuous dual-station screen changer enables uninterrupted filtration during plastic extrusion and pelletizing, improving melt cleanliness and production efficiency.

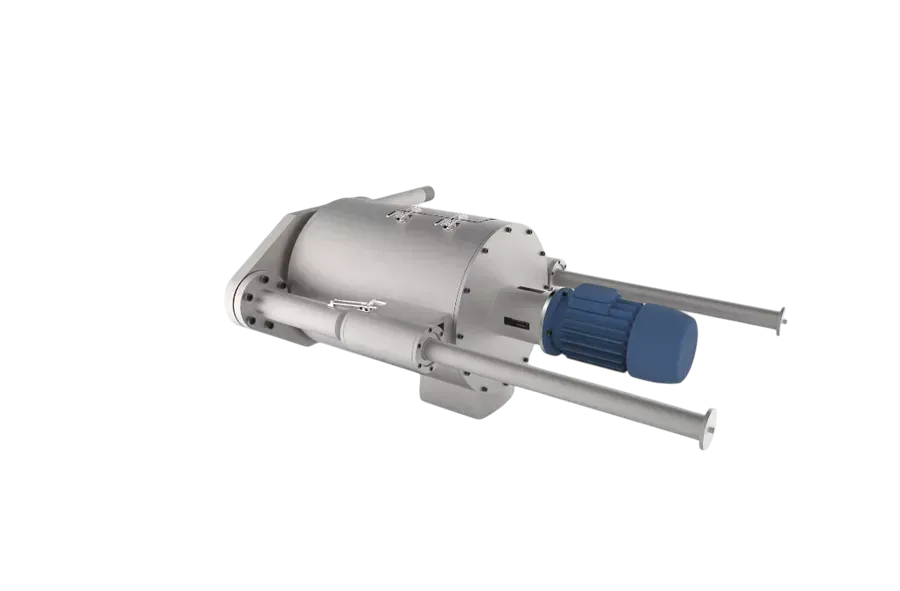

The horizontal water ring pelletizing system is suitable for high-capacity plastic pelletizing lines and provides stable pellet size and smooth operation.

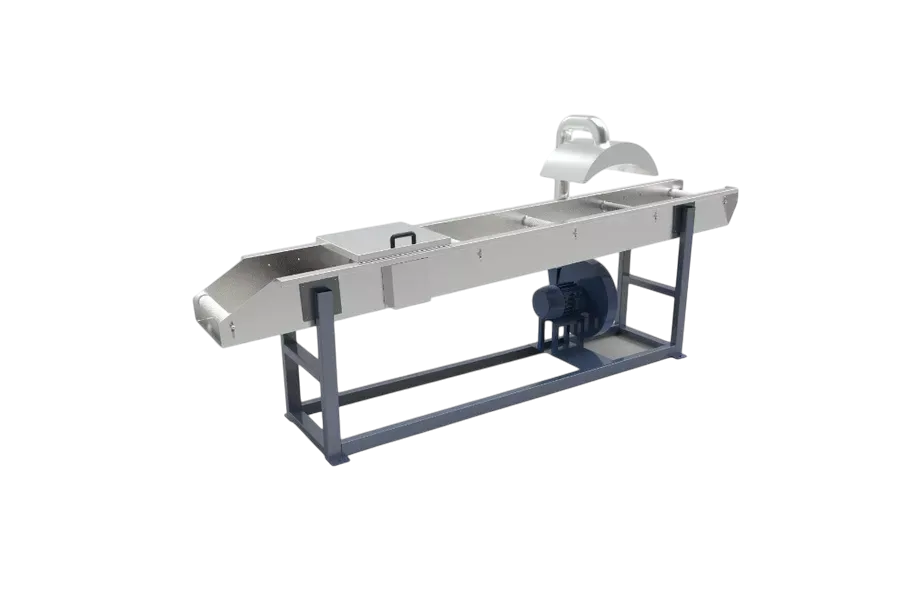

This unit combines vibration cooling and dewatering functions to improve pellet drying and cooling efficiency after pelletizing.
The air dryer unit removes moisture from washed plastic materials before pelletizing. It improves drying efficiency and helps ensure stable pellet quality in plastic recycling lines.

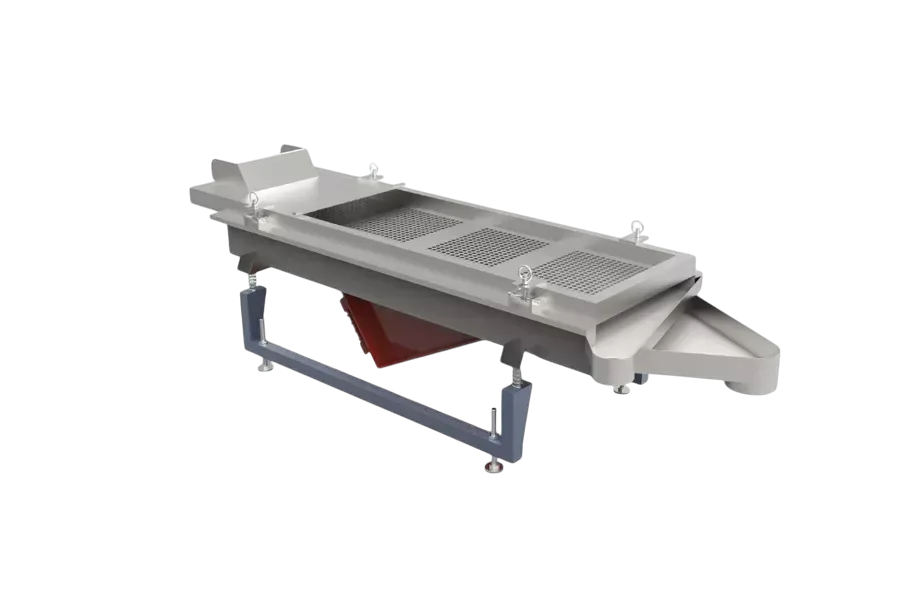

The vibrating screen filters pellets and removes oversized materials or impurities to ensure uniform pellet quality.
The material hopper temporarily stores recycled materials and ensures continuous feeding during plastic recycling and pelletizing operations.

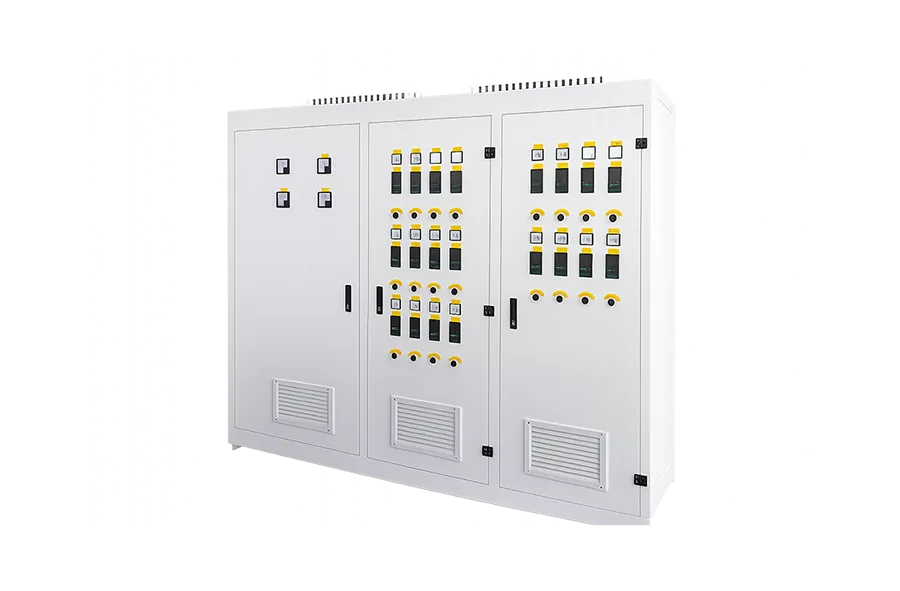

Centralized electrical control system designed for stable, safe, and intelligent operation of the entire production line.
Work Process of Two Stage Plastic Pellets Making Line
Screw Feeder → Extruder → Non-stop hydraulic screen filter changer → (Second stage extruder → Hydraulic screen filter changer → Die head/Water Ring cutting ) → Water cooling → Dryer → Vibrating Screen → Storage Hopper

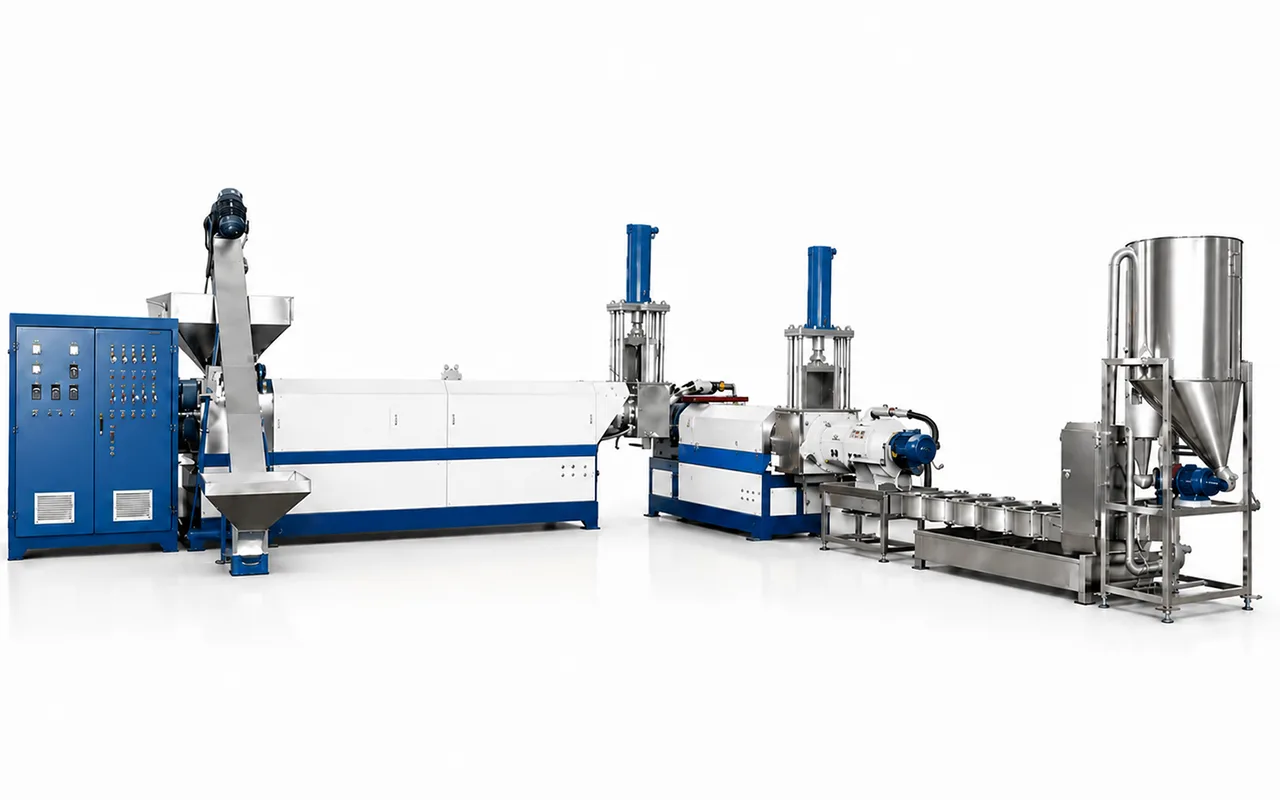

Structure of Two Stage Plastic Pellet Production Line
Specifications for HuaZhao Two Stage Plastic Granulating Line
| Feature | Specification |
|---|---|
| Screw Design | Single screw/Twin screw |
| Condition | Brand New |
| Plastic Processed | PE, PP, ABS, PS, HDPE/LDPE, PET |
| Application | Pelleting, Granulating, Pellet Making |
| Warranty | 1 Year |
| Key Selling Points | Competitive Price |
| Applicable Industries | Manufacturing Plant |
| Video Outgoing-Inspection | Provided |
| Core Components | Bearing, Motor, Gear, PLC |
| Machinery Test Report | Provided |
| Screw Material | 38CrMoALA |
| Screw Diameter (mm) | Generally Ø150-300 mm, Customizable |
| Screw Speed (rpm) | 150 rpm |
| Brand Name | HuaZhao |
| Voltage | 380V 50HZ， Customizable |
| Dimension (LWH) | Customizable based on requirements |
| Power (kW) | 90 |
| Function | Recycling & Pelletizing |
| Input Material | Crushed or agglomerated PE PP film |
| Cutting Type | Strand / Water Ring Cutting |
| Inverter | ABB |
| Motor | Siemens Beide |
| Mother Extruder L/D | 28:01:00 |
| Motor Power | 90 kW |
| Baby Extruder L/D | 10:01 |
| Motor Power of Baby Extruder | 30 kW |
| Water Tank | 4000 mm |
| Model | Screw Diameter (mm) | Screw Aspect Ratio (L/D) | Main Motor Power (kW) | Screen Changer | Output (kg/h) |
|---|---|---|---|---|---|
| HZ160 | ∅160 | 20-32 | 45-55 | Hydraulic | 200-300 |
| HZ180 | ∅180 | 20-32 | 75-85 | Hydraulic | 500-600 |
| HZ200 | ∅200 | 20-32 | 75-90 | Hydraulic | 700-800 |
| Custom | Up to ∅300 | 20-32 | Customizable | Hydraulic | Customizable |
Common Questions About Industrial Two Stage Plastic Granulating Line
Q: What is Two Stage Plastic Pelletizing Line?
A:
A two-stage plastic pelletizing line is a recycling system that uses two connected extruders to melt, filter, degas, and pelletize plastic materials more efficiently and stably than a single-stage system.
The first extrusion stage is mainly responsible for:
- Feeding and plasticizing the material
- Initial melting and degassing
- Removing moisture and volatile gases
The second extrusion stage further improves:
- Melt homogenization
- Filtration stability
- Degassing performance
- Final pellet quality and consistency
Compared with a single-stage pelletizing machine, a two-stage system is better suited for processing plastic materials with:
- Moisture residue
- Printing ink
- Dust or light contamination
- Mixed or unstable material quality
It is widely used for recycling:
- PE/PP film flakes
- Washed agricultural film
- PP woven bag flakes
- BOPP printed film
- Soft plastic regrind materials
Main advantages of a two-stage pelletizing line:
- More stable extrusion pressure
- Better degassing efficiency
- Higher-quality plastic pellets
- Improved filtration performance
- Reduced black spots and air bubbles
A two-stage pelletizing line offers an ideal balance between pellet quality, operating stability, and production cost, making it one of the most popular solutions in plastic film recycling.
Q: What is Two Stage Plastic Pelletizer Line Price
A:
The two stage plastic pelletizer line price is About USD 20,000–60,000 depending on material, capacity and configuration.
Q: What is the Working Process of two stage plastic Pellet Making Machine?
A:
Material Feeding → Extruder → Hydraulic screen filter changer → (Second stage extruder → Hydraulic screen filter changer → Die head/Water Ring cutting ) → Water cooling → Dryer → Vibrating Screen → Storage Hopper
Q: What is Suitable Raw Materials for tow stage plastic pelletizing machine the
A:
Suitable for PP, PE, PET, ABS, HDPE, PS, film scraps, rigid plastics, and washed flakes.
Q: What Information Do We Need Before Recommending a Plastic Pellets Production Line?
A:
1. What Material Will Be Recycled?
Please let us know the material type, such as:
PP raffia
PE film
HDPE bottles
PET flakes
ABS
Rigid plastics
Different materials require different recycling processes and machine configurations.
2. Is the Material Clean or Dirty?
The contamination level affects:
Washing system design
Drying requirements
Filtration configuration
Final pellet quality
Photos or videos of the raw material are very helpful.
3. What Capacity Do You Need?
Please provide your expected output, for example:
100 kg/h
500 kg/h
1000 kg/h or even more
Capacity directly affects machine size and power consumption.
4. What Pellet Quality Do You Require?
Please tell us:
End application of the pellets
Pellet size requirements
Moisture requirements
Filtration expectations
Higher pellet quality may require additional degassing or filtration systems.
5. What Is Your Factory Power Standard?
Please provide:
Voltage
Frequency
Phase
Example:
380V / 50Hz / 3 Phase
6. Do You Need a Complete Recycling Line?
We can provide:
Crushing
Washing
Drying
Pelletizing
Conveying
Storage systems
Complete turnkey recycling solutions are available.
7. Installation Country
Different countries may require:
CE certification
Special voltage standards
Local safety requirements
Need Technical Advice?
Our engineering team can recommend the most suitable recycling solution based on your materials and production goals.
Contact HuaZhao Machinery for a customized quotation.
