Single Shaft Shredder
Leading Recycling Plastic Single Shaft Shredder Manufacturers in China
HuaZhao is a professional plastic single shaft shredder manufacturer in China, providing high-efficiency shredding machines for PE film, PP woven bags, plastic pallets, drums, pipes, and other waste plastics recycling applications.
- CE SGS BV ISO9001
- Excellent pre-sales and after-sales service

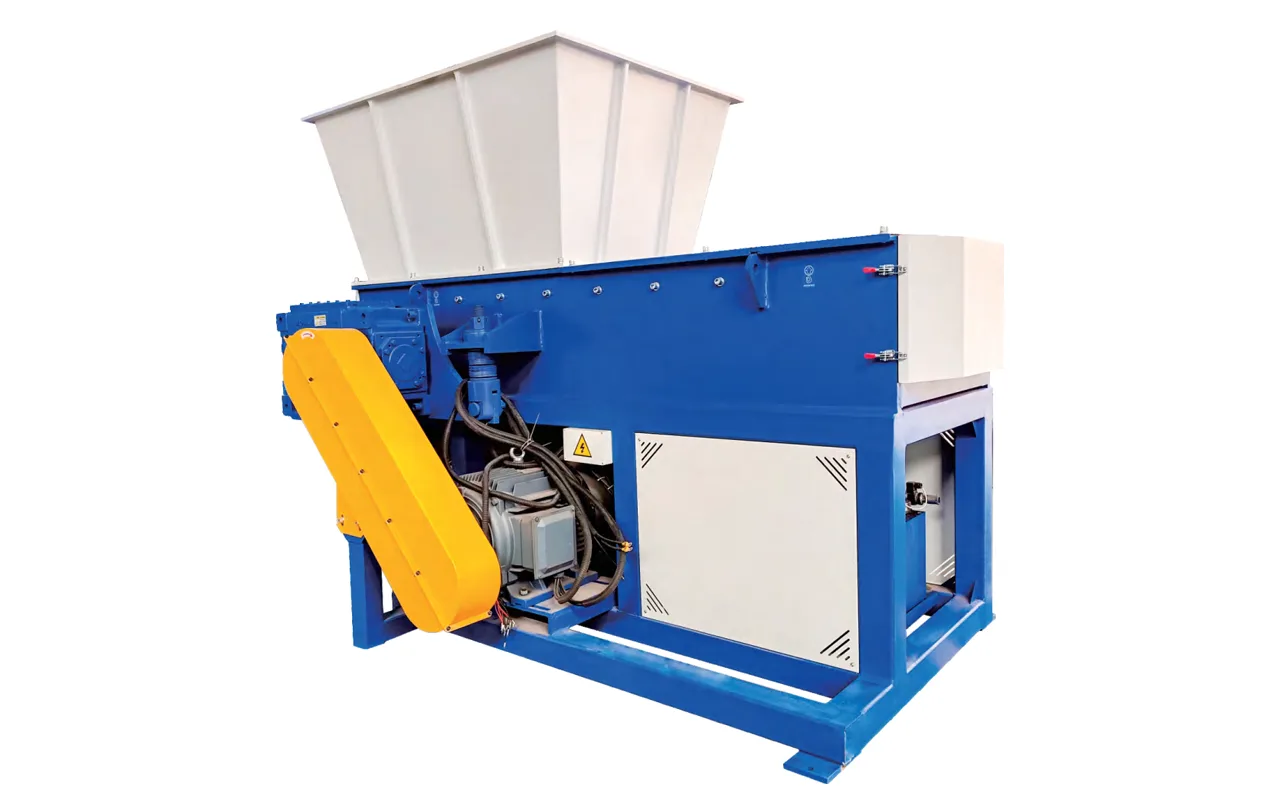

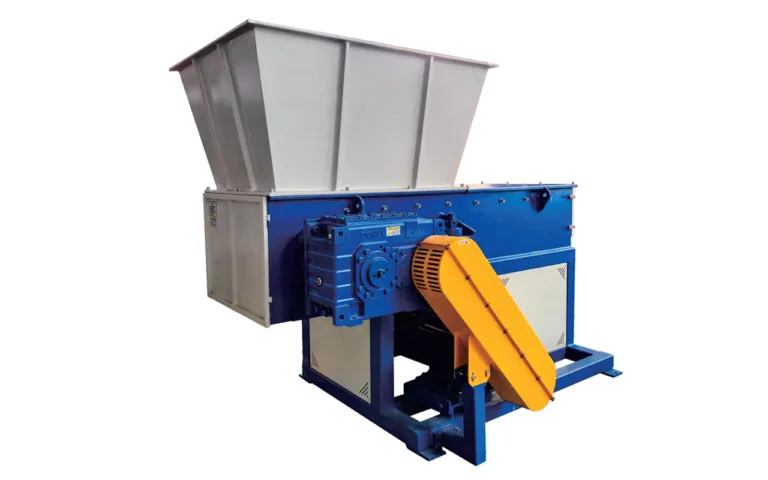

The HuaZhao Plastic Single Shaft Shredder is designed for efficient shredding of various plastic materials, featuring stable performance, low energy consumption, high output capacity, and reliable operation for plastic recycling applications.
Key Features:
- Imported DC53 rotary blades and D2 fixed blades for high durability and wear resistance.
- Titanium-coated shaft surface extends machine service life.
- Equipped with Siemens and Schneider electrical components for stable operation.
- PLC automatic control system with one-button start and stop for easy operation.
- 4-edge square blades can be reused multiple times, reducing blade replacement costs.
Suitable for crushing PP, PE, PET, PC, ABS, plastic lumps, plastic films, electronic waste, aluminum cans, plastic building materials, wood, and other recyclable materials.
Industrial Plastic Shredder Machine For Sale
Specifications for Plastic Single Shaft Shredder Machine
| Item | Unit | GSD600 | GSD800 | GSD1000 | GSD1200 |
|---|---|---|---|---|---|
| Outer Size | mm | 2150×1420×1800 | 3050×1620×2150 | 3350×1950×2800 | 3350×1950×2800 |
| Inlet Size | mm | 915×600 | 1350×800 | 1450×1000 | 1450×1200 |
| Rotation Diameter | mm | 300 | 355 | 355/400 | 415 |
| Rotation Speed | rpm | 72 | 72 | 72 | 72 |
| Screen Aperture | mm | 40-60 | 40-80 | 40-100 | 40-100 |
| Moving Blade Qty | pcs | 30 | 44 | 56 | 68 |
| Fixed Blade Qty | pcs | 4 | 4 | 4 | 4 |
| Motor Power | kW | 22/30 | 37/45 | 55/75 | 75/90 |
| Hydraulic Station | kW | 2.2 | 3 | 4 | 5.5 |
| Push Range | mm | 600 | 800 | 1000 | 1200 |
| Capacity | kg/h | ≤600 | ≤800 | ≤1000 | ≤1500 |
| Weight | kg | 2300 | 3800 | 4900 | 6500 |
Common Questions About Industrial Single Shaft Shredder Machine
Q: What is shredding machine ?
A:
A shredding machine is an industrial recycling machine designed to cut, tear, and reduce large materials into smaller pieces for easier processing, transportation, or recycling. It is widely used for shredding waste plastics, rubber, wood, metal, paper, tires, and other industrial materials.
Plastic shredding machines are commonly used in plastic recycling lines to process materials such as PE film, PP woven bags, plastic pallets, pipes, drums, and plastic lumps before washing or pelletizing. They feature high torque, low rotating speed, stable operation, and efficient crushing performance for heavy-duty recycling applications.
Q: What is waste shredder machine price ?
A:
Waste shredder machine prices vary widely depending on machine type, motor power, capacity, and application.
Typical price ranges:
- Small plastic shredder machines: around $2,000–10,000
- Industrial single shaft shredders: around $10,000–30,000
- Heavy-duty double shaft shredders: around $20,000–180,000
- Complete waste recycling shredder systems: around $10,000–300,000 depending on capacity and automation level.
Price is mainly affected by:
- Shredding capacity (kg/h)
- Material type (plastic, metal, tire, wood, MSW)
- Motor power
- Rotor size and blade design
- Hydraulic system
- Automation level
For plastic recycling applications such as PE film, PP woven bags, plastic pallets, drums, and pipes, industrial single shaft shredders are commonly priced between $15,000–60,000 depending on output capacity and configuration.
Q: Where to Find an Industrial Single Shaft Shredder Manufacturer?
A:
China
The world’s largest production base for plastic recycling machinery and industrial shredders, especially in:
- Jiangsu
- Guangdong
- Zhejiang
- Anhui
China dominates the mid-range and cost-effective market, with strong export volume and complete supply chains.
