Industrial Tin Can Shredder
High Quality Metal Tin Cans Recycling Machine Manufacturer in China

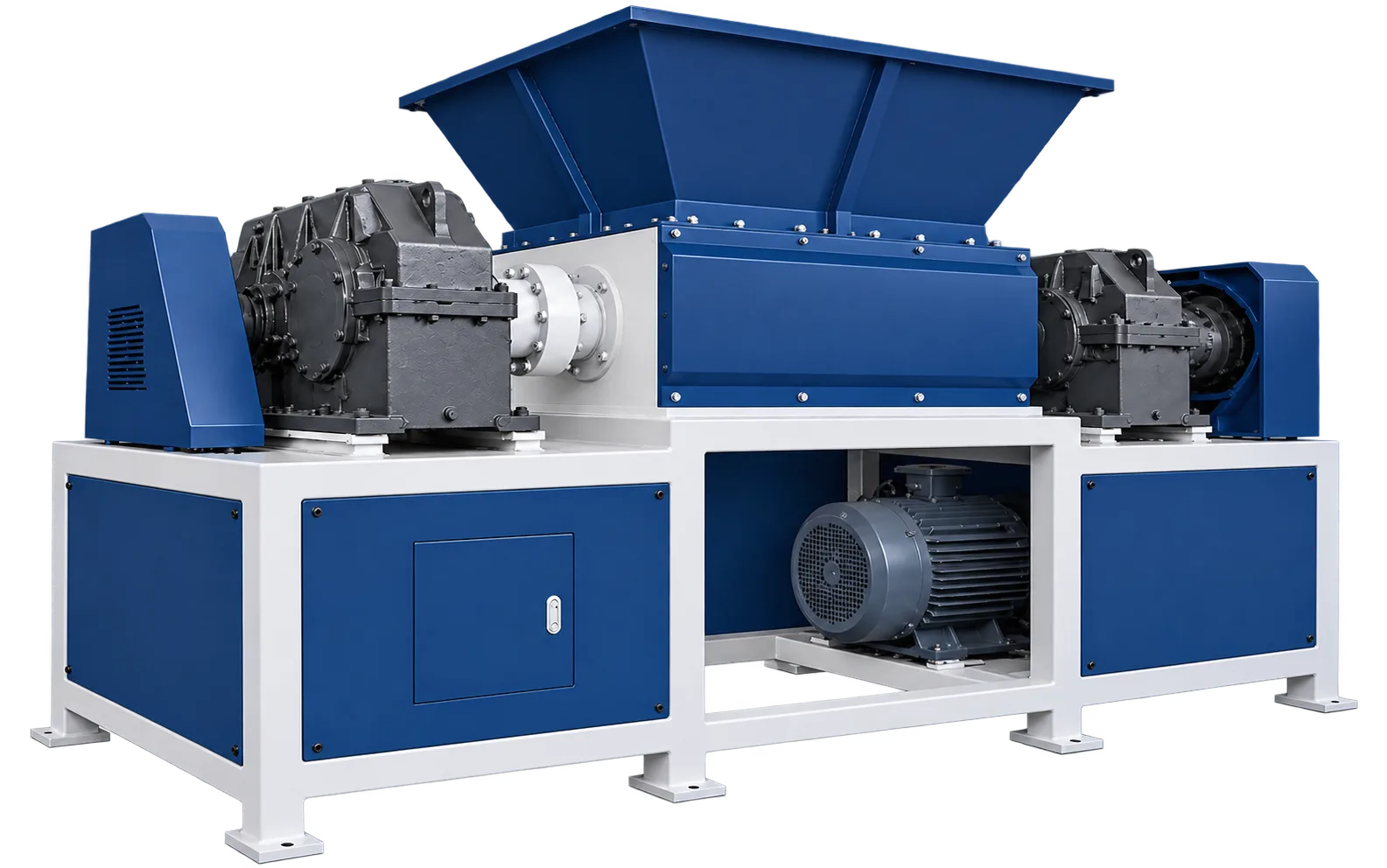

HuaZhao Industrial Tin Can Shredder is designed to process tin cans, steel cans, aluminum cans, and other metal containers into smaller pieces for recycling. Featuring a heavy-duty structure and high-torque shredding system, it provides reliable performance for scrap metal recycling plants and industrial waste processing facilities. Shredding capacity and machine configuration can be customized according to material type, feed size, and output requirements.
- CE ISO9001
- Excellent pre-sales and after-sales service
What Types of Tin Cans Can Be Shredded?
How HuaZhao Provides Customized Tin Cans Shredder Machine Solutions
Custom Double Shaft Design
Custom Capacity Design
Case Video of Industrial Small Tin Can Shredder
Watch our Tin Can Shredder in action as it efficiently processes scrap tin cans, reducing material size for easier handling, sorting, and recycling.
Tin Can Shredder Machines For Sale
Specifications for Small Tin Can Shredder
| No. | Item | HZ-DS200 Double Shaft | HZ-DS400 Double Shaft | HZ-DS400 Single Motor | HZ-DS60015 Double Shaft | HZ-DS60011 Double Shaft |
|---|---|---|---|---|---|---|
| 1 | Blades | 180×12 | 180×15 | 200×20 | 250×20 | 250×20 |
| 2 | Spacers | 88×12.5 | 88×15.5 | 118×20.4 | 147×20.5 | 147×20.5 |
| 3 | Fixed Blades | Matched | Matched | Matched | Matched | Matched |
| 4 | Shafts Diameter | Φ75 | Φ75 | Φ90 | Φ130 | Φ130 |
| 5 | Bearings | Matched | Matched | Matched | Matched | Matched |
| 6 | Bearing Plates | 40 mm | 40 mm | 50 mm | 80 mm | 80 mm |
| 7 | Motor | 3 KW - 4P | 5.5 KW - 4P | 7.5 KW - 4P | 15 KW - 4P | 11 KW - 4P |
| 8 | Gearbox | K77 | K87 | K97 | ZQ-500 | K-107 |
| 9 | Input Speed | 17 rpm | 17 rpm | 17 rpm | ||
| 10 | Motor Cabinet | 600×500 mm | 600×500 mm | |||
| 11 | Chamber Size | 300×340 mm | 400×340 mm | 500×400 mm | 100×100×5 mm | 80×80×5 mm |
| 12 | Guards | Matched | Matched | Matched | Matched | Matched |
| 13 | Sheet Metal Hopper | 2 mm | 2 mm | 2 mm | 3 mm | 3 mm |
| 14 | Machine Dimensions | 1030×615×1400 mm | 1140×615×1610 mm | 1265×540×1710 mm | 2650×1220×1620 mm | 2190×770×1920 mm |
| 15 | Machine Weight | 390 kg | 485 kg | 760 kg | 2,100 kg | 1,770 kg |
| 16 | Painting | Anti-corrosion paint | Anti-corrosion paint | Anti-corrosion paint | Anti-corrosion paint | Anti-corrosion paint |
| 17 | Application | Plastic products, kitchen waste, small wood boards, cardboard, carton, Tin, Cans, tin, cans, customizable | Light metal products, plastics, kitchen waste, small wood boards, cardboard, cartons, Tin, Cans, tin, cans, customizable | Light metal products, plastics, kitchen waste, small wood boards, cardboard, cartons, tin, cans, customizable | Metal products, plastics, small wood boards, cardboard, cartons, tin, cans, customizable | Metal products, plastics, small wood boards, cardboard, cartons, tin, cans, customizable |
Welcome to HuaZhao Tin Can Shredding Machine Factory
Leading Tin Shredder Machines Manufacturer
Common Questions About Industrial Shredder Machine for Tin Cans
Q: What is a tin can shredder?
A:
An industrial wire and cable recycling shredder is a machine designed to reduce scrap wires and cables into smaller pieces for further processing. It is commonly used in copper cable recycling, aluminum cable recycling, and industrial scrap recovery facilities.
Q: What types of cans can be shredded?
A:
Tin can shredders can process food cans, beverage cans, steel cans, empty paint cans, and other similar metal containers, depending on the machine configuration.
Q: Can a tin can shredder process steel cans?
A:
Yes. Tin cans are generally steel cans with a thin tin coating, so industrial metal shredders can process them when properly configured.
Q: What capacity does a tin can shredder have?
A:
Capacity depends on the can size, material condition, feeding method, required output size, and machine configuration. HuaZhao can customize the system according to the required throughput.
Q: Can shredded tin cans be separated from other materials?
A:
Yes. After shredding, magnetic separation can be used to recover ferrous metal from mixed waste streams and improve material recovery.
Q: Can HuaZhao customize a tin can shredding machine?
A:
Yes. The shredder can be configured according to material type, feed size, capacity, output requirements, and the downstream recycling process.
Q: What is the difference between a tin can shredder and a metal crusher?
A:
A shredder uses rotating cutters to tear and reduce bulky cans, while a crusher primarily compresses or crushes material. Shredders are often used for initial size reduction of bulky metal cans.
Q: How do I choose the right tin can shredder?
Consider the can type, maximum feed size, required capacity, desired output size, and whether magnetic separation or other downstream equipment is required.
Q: How Much Does a Tin Can Shredder Cost?
The price of a tin can shredder depends on the machine size, motor power, shredding capacity, blade configuration, and auxiliary equipment. Small tin can shredders from HuaZhao typically range from around US$3,000 to US$5,000, with a processing capacity of approximately 50–200 kg/h. Larger industrial shredding systems can cost significantly more depending on their capacity and configuration. Contact HuaZhao with your material type, feed size, and required capacity for an accurate quotation.
